Objet260 Connex

Objet260 Connex

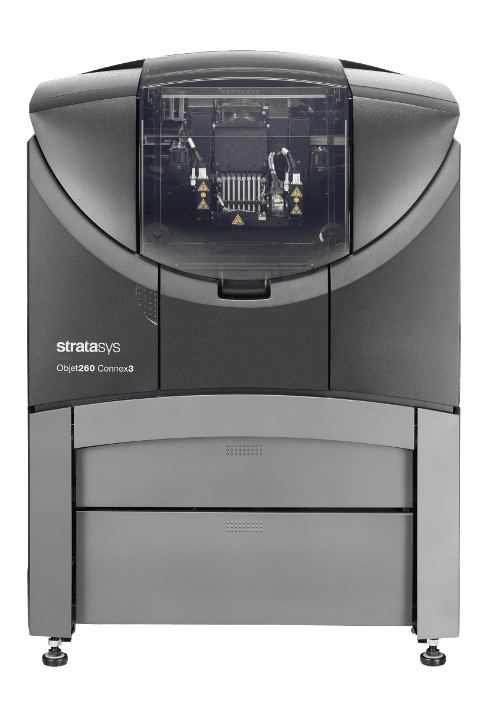

The Objet260 Connex allows users to create prototypes containing distinct material elements, such as rigid walls with flexible, rubber-like joints or models combining transparent and opaque parts. The Objet260 Connex can use Objet's range of over 60 printing materials which provide users with a wide range of mechanical, thermal and physical properties from rigid (Objet Vero family) to rubber (Objet Tango family) to clear transparency (Objet VeroClear) and ABS-grade engineering plastics (Objet RGD5160-DM). The Objet260 Connex has a 260 x 260 x 200mm (10.2 x 10.2 x 7.9") tray size and uses sealed material cartridges that are easy to insert and remove. Models are cured during the build process and can be handled immediately after printing. The system prints in 16-micron layers, producing models of unrivalled resolution detail and professional accuracy.

Features

• Multi-material models - eliminating the need to design, print and glue separate model elements together
• Different parts. Different materials. Same tray - saves time and serves multiple requirements simultaneously
• Outstanding 16-micron, high-resolution print layer accuracy
• 600 DPI X & Y resolution
• Thin walls down to 0.6mm (0.024")
• High throughput - Up to 20mm per hour per strip
• Reliability and robustness - at least 72 hours of non-stop build capacity
• High speed - simultaneously print multiple items of different materials; models cure while printing; models can be handled immediately after print
• Easy-to-remove support material enabling complex geometries
