Wings of the modern aircraft are thin and streamlined thus ensuring maximum aerodynamic efficiency. From structural viewpoint a thick wing would be more efficient in carrying the load. The tendency of increasing aircraft size shifts the weight of the design balance towards structural considerations. As a result, improving aerodynamics of thick wings is essential for further progress in aviation.
Fig.1. A sketch of separated flow past a thick airfoil and a sketch of a flow past an airfoil with a cavity trapping a vortex.
Trapping vortices is a technology for preventing vortex shedding and reducing drag in flows past bluff bodies. Large vortices forming in high-speed flows past bluff bodies tend to be shed downstream, with new vortices forming in their stead. This leads to an increase in drag and unsteady loads on the body, and produces an unsteady wake. If the vortex is kept near the body at all times it is called trapped. Vortices can be trapped in vortex cells as in Figure 1.
Fig.2. In EKIP large-scale separation was prevented by trapped vortices. EKIP, built in 1980th in Russia, became known as a flying saucer in the West. How flying saucers could be observed before 1980th remains a mystery ☺. (Photo from S.Chernyshenko's archive, the author is not known, but many similar materials are available at http://www.ekip-aviation-concern.com/.)
Prior to the final experiment of VortexCell2050 (FP6 project, 2005-2009) there had been only two reportedly successful implementations of the idea of trapped vortex, namely, the Kasper wing and the EKIP (Ecology and Progress) aircraft (Figure 2). Attempts to reproduce Kasper's results in a wind tunnel did not confirm Kasper's claims. The stories of the Kasper wing and EKIP are complicated, controversial, and involve much wider issues than trapped vortices. More can be found on the Web.

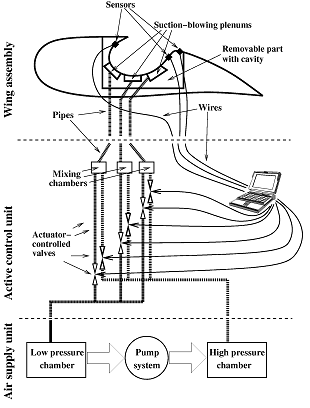

Fig.3. A sketch of a feedback-control system for a trapped vortex
Stabilising the trapped-vortex flow is a challenge. Future work would aim at feedback control of such a flow, as illustrated in Fugure 3.
